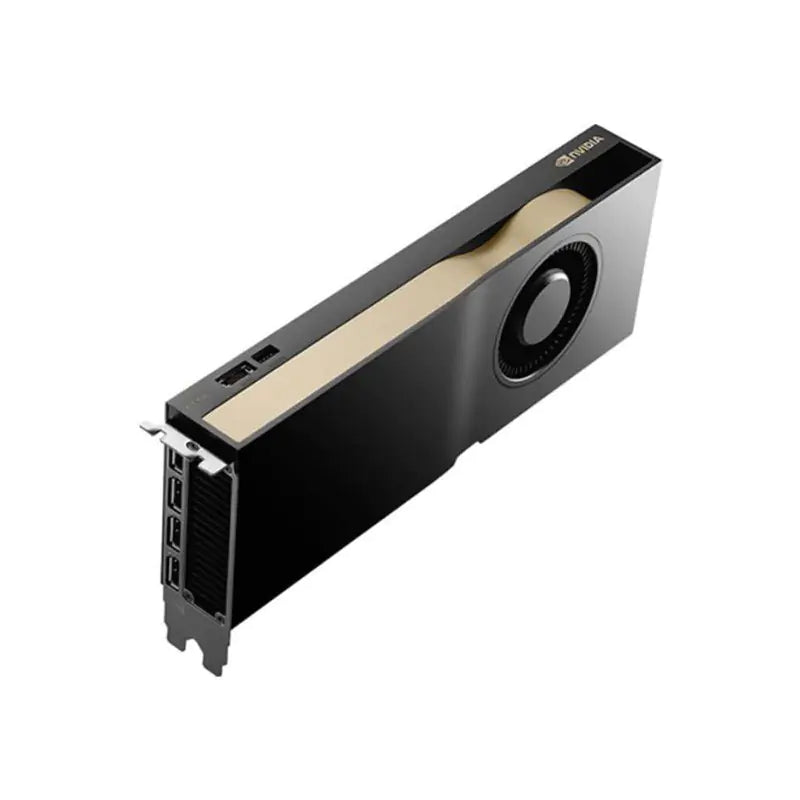

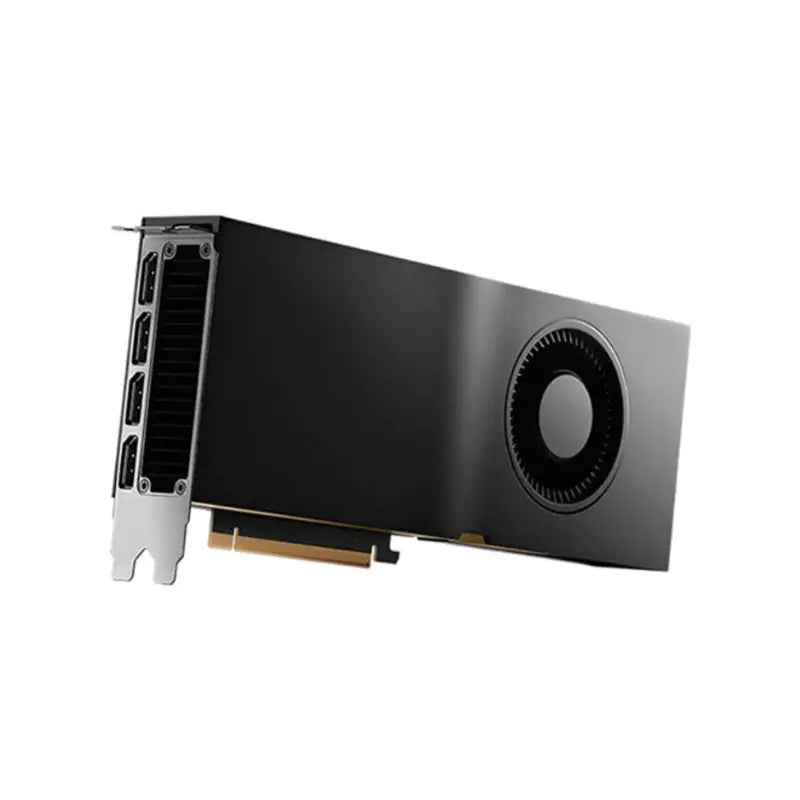

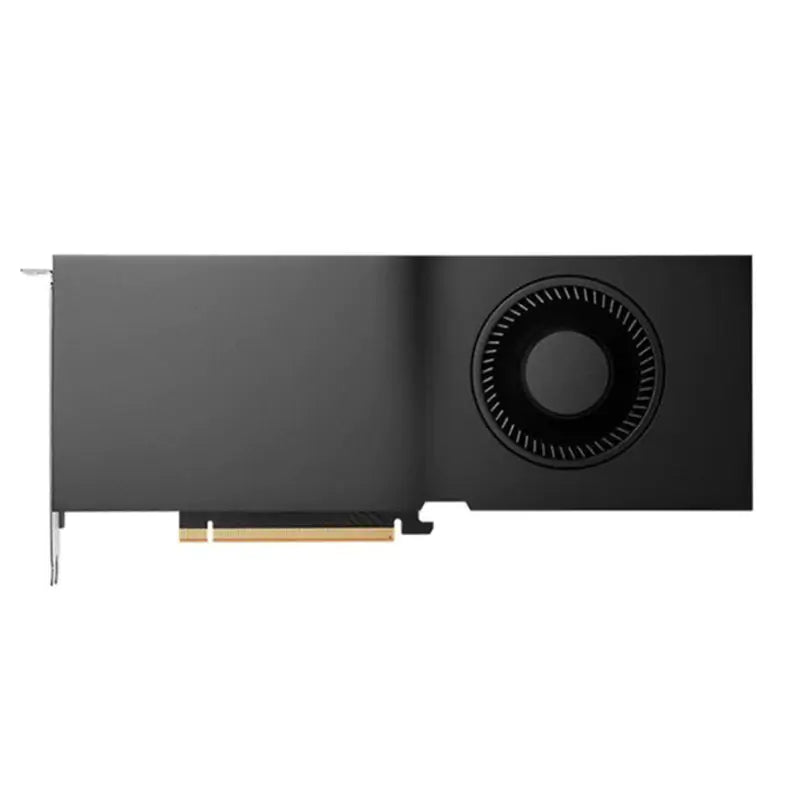

NVIDIA RTX 4500 Ada Lovelace 24GB Graphics Card
The NVIDIA RTX 4500 Ada is Powered by the NVIDIA Ada Lovelace architecture Designed to deliver outstanding gaming and creating, professional graphics, AI, and compute performance. It has a Dual slot card featuring 24 GB of DDR6 memory and a 210W maximum power limit. NVIDIA RTX 4500 supports x16 PCIe 4.0 connectivity. The RTX 4500 combines 60 third-generation RT Cores, 240 fourth generation Tensor Cores, and 7,680 CUDA cores to deliver AI-powered graphics and real-time rendering. Discover new ways to create incredible workflow acceleration with RTX 4500.
-
Tensor performance: 634.0 TFLOPS
-
Single-precision performance: 39.6 TFLOPS
-
RT Core performance: 91.6 TFLOPS
-
System interface: PCIe 4.0 x16
-
Power consumption: Total board power: 210W
-
Form factor: 4.4H x 10.5L, dual slot
-
Display connectors: 4x DisplayPort 1.4a
-
Max simultaneous displays: 4x 4096 x 2160 @ 120Hz, 4x 5120 x 2880 @ 60Hz, 2x 7680 x 4320 @ 60Hz
-
Encode/decode engines: 2x encode, 2x decode (+AV1 encode and decode)
-
Graphics APIs: DirectX 12, Shader Model 6.7, OpenGL 4.6, Vulkan 1.3
-
Compute APIs: CUDA 12.2, OpenCL 3.0, DirectCompute
SPECIFICATIONS:
|
GPU memory
|
24GB GDDR6
|
|
Memory interface
|
192-bit
|
|
Memory bandwidth
|
432 GB/s
|
|
Error-correcting code (ECC)
|
Yes
|
|
CUDA Cores
|
7680
|
|
Tensor Cores
|
240
|
|
RT Cores
|
60
|
|
Single-precision performance
|
39.6 TFLOPS
|
|
RT Core performance
|
91.6 TFLOPS
|
|
Tensor performance
|
634.0 TFLOPS
|
|
NVIDIA NVLink
|
No
|
|
NVIDIA NVLink bandwidth
|
No
|
|
System interface
|
PCIe 4.0 x16
|
|
Power consumption
|
Total board power: 210W
|
|
Form factor
|
4.4 H x 10.5 L, Dual Slot
|
|
Display connectors
|
4x DisplayPort 1.4a
|
|
Max simultaneous displays
|
4x 4096 x 2160 @ 120 Hz
|
|
Max simultaneous displays
|
4x 5120 x 2880 @ 60Hz
|
|
Max simultaneous displays
|
2x 7680 x 4320 @ 60Hz
|
|
Encode/decode engines
|
2x encode, 2x decode (+AV1 encode and decode)
|
|
Graphics APIs
|
DirectX 12, Shader Model 6.7
|
|
Graphics APIs
|
OpenGL 4.6, Vulkan 1.3
|
|
Compute APIs
|
CUDA 12.2, OpenCL 3.0, DirectCompute
|
|
